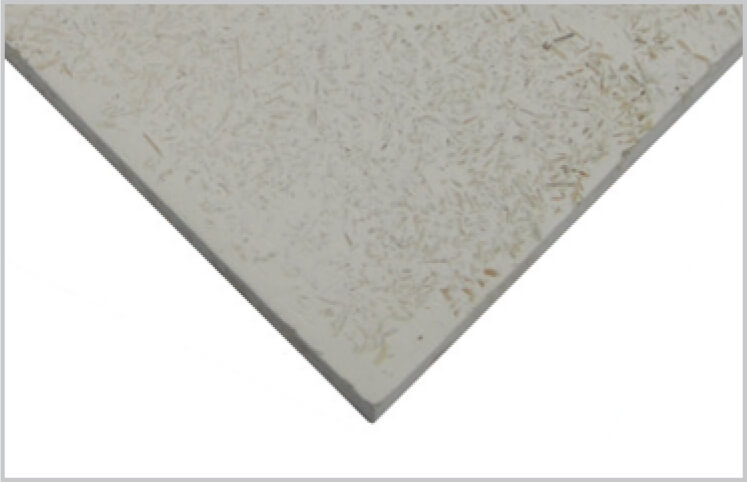

Ekcel Mat BSB

Ekcel

Both surfaces burled, all four edges taper for acoustic jointing
Great LF sound absorber (where exposed), LF noise | vibration isolation where backer board

Parameters	Specifications
Type	Non-Grid
Finish	Plasters
Core	Microparticle\|Longfibre
Thickness (mm)	18
Size (mm)	600 x 1200
Density (Kg/m³)	900
Weight (Kg/m²)	16.2
Fire (Class)	1 & P
NRC	E300*- 0.42 (125Hz – 1.0)
STC	42**
Thermal (W/mk)	0.1
Climate (⁰C, RH)	50, 95
Light (%)	na
Green (VOC, RC%)	Low, 50
Warranty (Years)	10
Maintenance	Paintable

Install Accessories – Ceiling	Strut WC25, SA25, MC45, CC25, SynthPF, Seam AJC (KSCH optional)
Install Accessories – Panelling	Strut CC10\|CC25\|CC50, SynthPF, Seam AJC, Stick S7, Seam AJC (Sway optional) Local hardware and fasteners by others
